| Product Attribute | Attribute Value |
|---|---|
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | –10 °C |
| Port, Type | (4) × PoE (1) × Ethernet |
| Series | |
| Transmission Speed | 10/100 Mbit/s |
| Voltage Rating | 24 VDC |
Overview

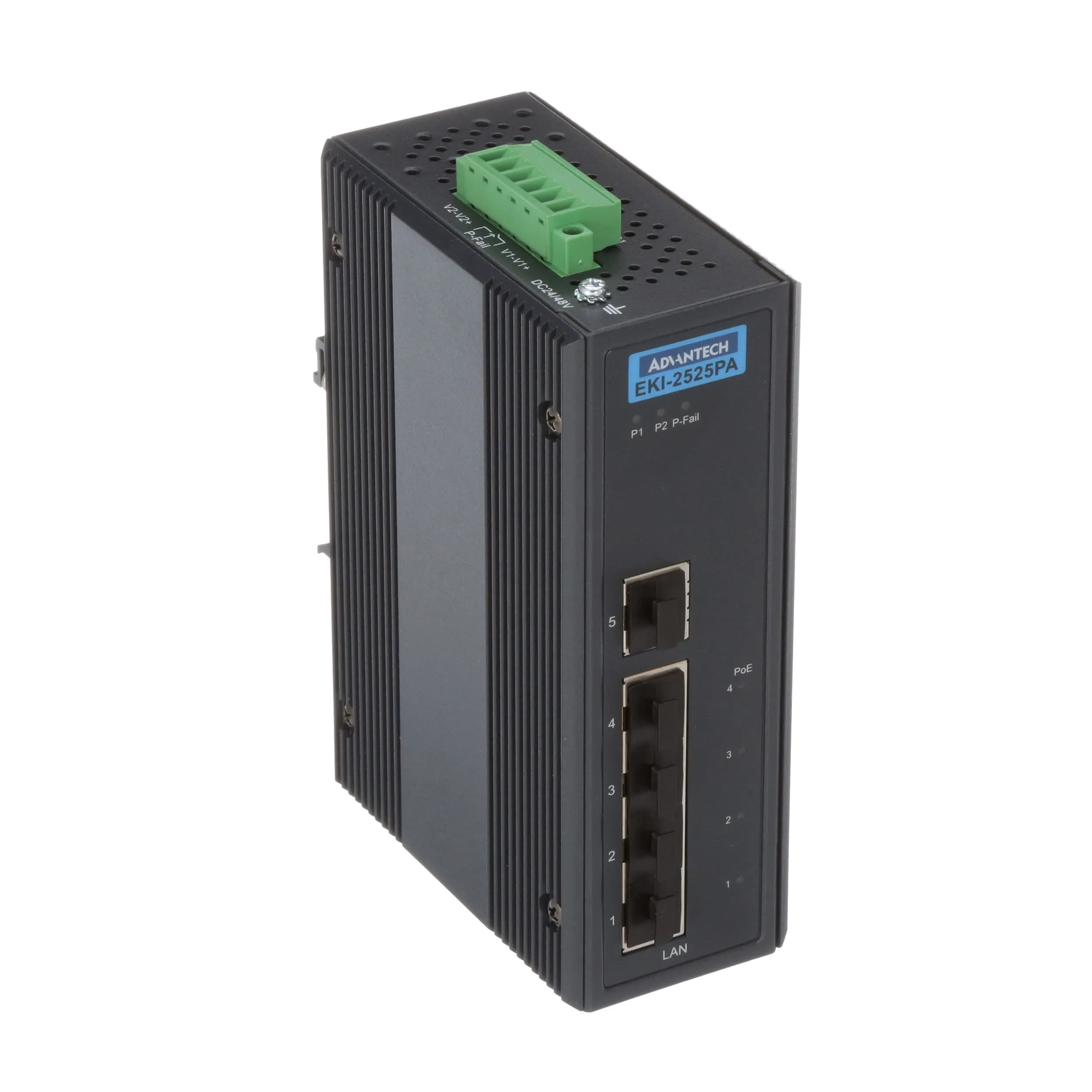

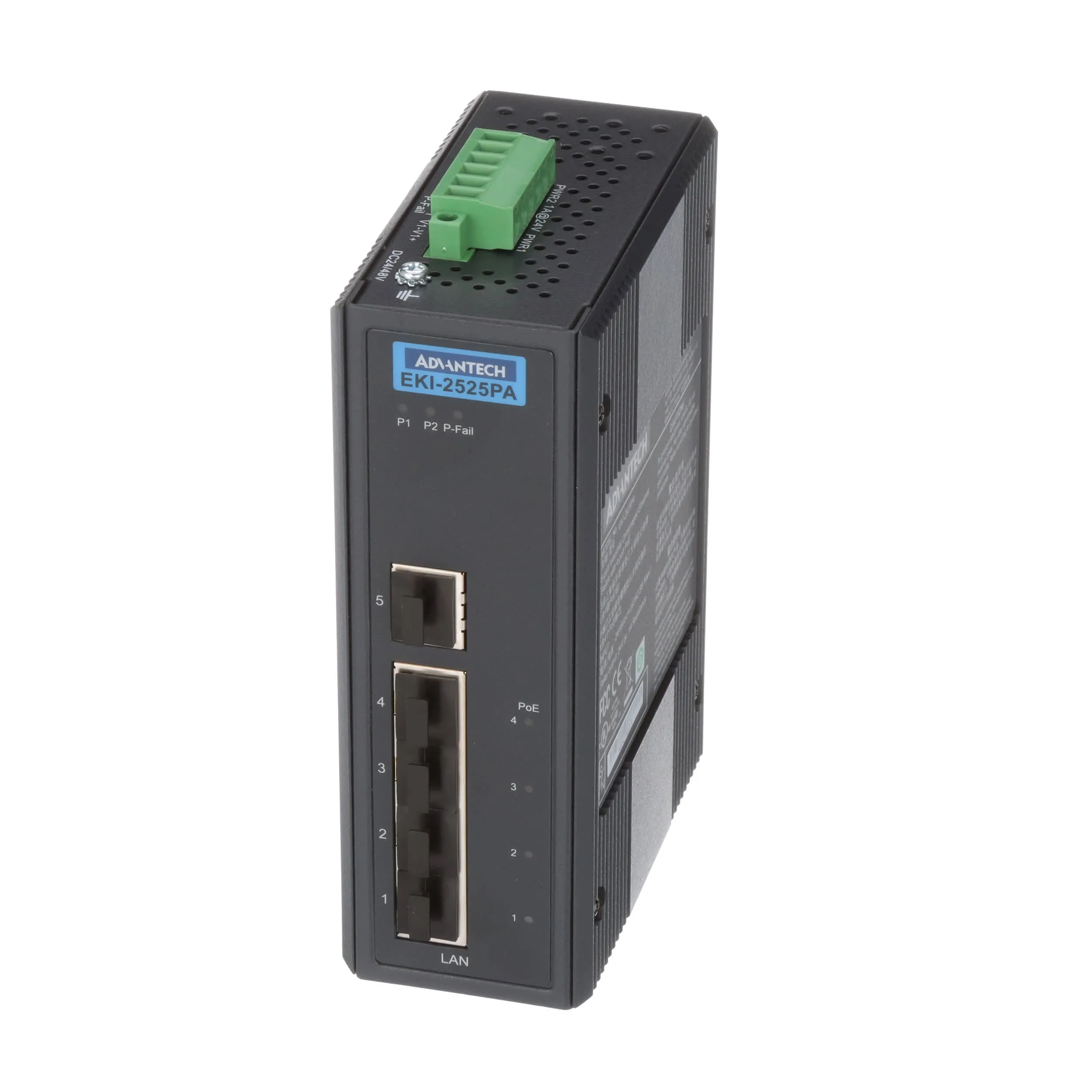

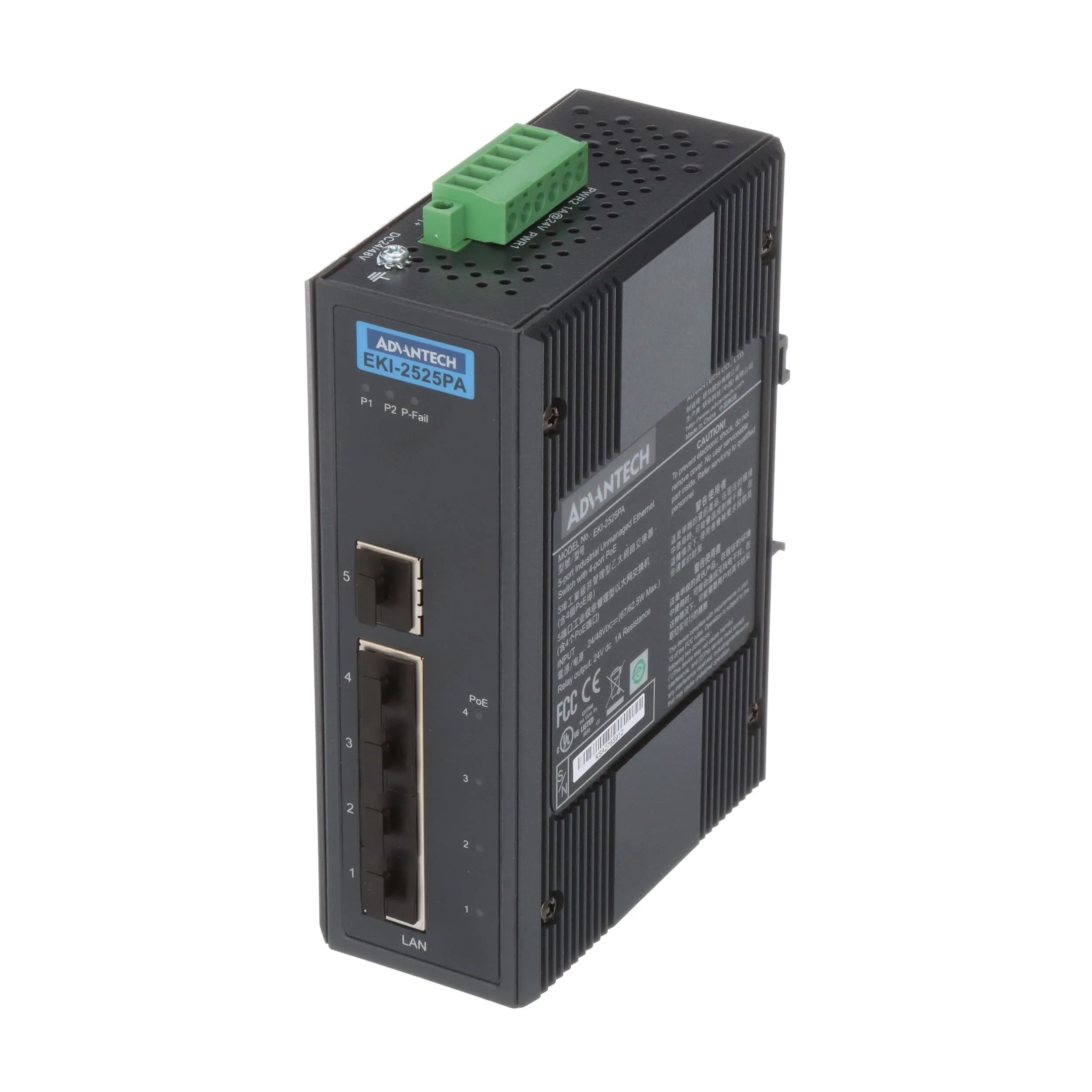

The EKI-2525PA and EKI-2528PAI are a 5/8-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switches that supports 4 PoE ports which are classified as power source equipment (PSE). These PoE devices make centralized power supply possible and provide up to 15.4 watts of power per port. Advantech EKI PoE devices can be used to power IEEE 802.3af compliant powered devices (PD) through Ethernet cable and eliminate the need for additional power wiring. Advantech EKI PoE devices come equipped with all the standard features of the EKI family. Furthermore, they offer a 24/48 VDC redundant power input design and is secured with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that rates IP30 to help against from dusty industrial environments.
