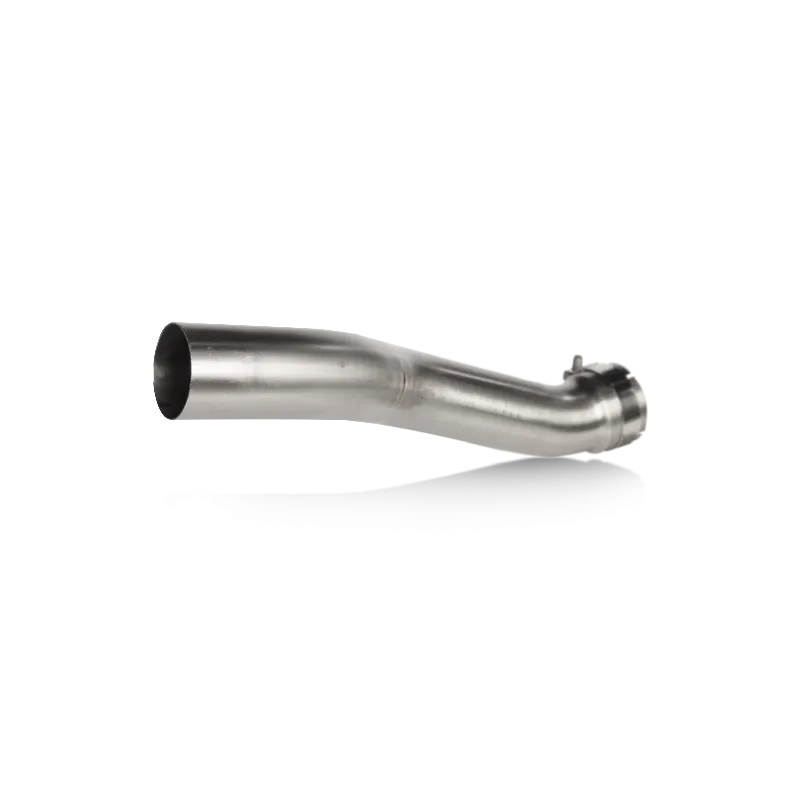

This product was developed to be used with the Slip-On Line (Titanium) for the Harley-Davidson Pan America 1250 and is intended for use on racetracks and closed courses only. Fabricated from high-grade stainless steel, the fitting of the optional link pipe removes the stock pre-muffler, benefitting from a weight reduction of an impressive 76.5% (1.9 kg) over the stock version. When installed with the Slip-On Line (Titanium) exhaust, performance is increased by 2.7 kW (3.7 hp) at 9,000 rpm and torque is boosted by 6.8 Nm at 2,900 rpm when tested on the Akrapovic in-house dyno against a bike with a standard stock exhaust. It serves up a deep racing tone, perfectly in keeping with the V-twin engine. No remapping of the ECU is required during installation.
EC/ECE type approval of the Slip-On Line (Titanium) exhaust is not valid if the optional link pipe is attached.
The product is developed and tested on EU vehicle specification and does not fit on the non-EU spec models.
THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.
- Power 2.7 kW at 9000 rpm
- Torque 6.8 Nm at 2900 rpm
- Weight -1.9 kg
VIEW THE DATA
| Unit | Stock | Akrapovic | Max gain | |
|---|---|---|---|---|
| Max. power | kW | 109.1 / 9200 rpm | 111.4 / 9100 rpm | 2.7 / 9000 rpm |
| HP (m) | 148.3 / 9200 rpm | 151.4 / 9100 rpm | 3.7 / 9000 rpm | |
| HP (i) | 146.3 / 9200 rpm | 149.4 / 9100 rpm | 3.6 / 9000 rpm | |
| Max. torque | Nm | 122.2 / 8300 rpm | 124.5 / 8300 rpm | 6.8 / 2900 rpm |
| lb-ft | 90.1 / 8300 rpm | 91.8 / 8300 rpm | 5 / 2900 rpm | |
| Weight | kg | 2.51 | 0.59- 1.9 | - 1.9 |
| lb | 5.5 | 1.3- 4.2 | - 4.2 | |
| % | - 76.5 | |||
| Noise | dB | 91.3 / 3800 rpm | 98.6 / 3800 rpm | 7.3 |
| Inst. time | min | 60 |
