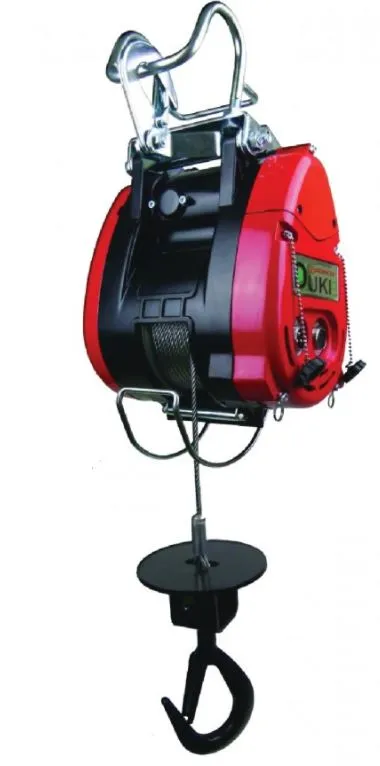

Duke Winch 230V, 230Kg Electric Mini Wire Rope Winch TH Series  | Model : WIN-DU230TH

Features :

• Duke Mini Winch is particularly designed for building sites, commercial and domestic, as well as various construction workplaces, such as warehousing, buildings, scaffoldings, storage areas, factories in general, as well as domestic applications.
• Compact and Lightweight Design: Easy carry and installation.

• Upper and Lower Limiters: To prevent from reverse and over roll of wire rope.
• Dual Brakes: Dynamic and mechanical brakes provides instant and safe braking.
• Oil Bath Gear Box: To prevent overheat from brake device.

• Swivel Lower Hook: Made by forging formation and installed with a safety latch.
• Plug Connections: 7mtr Pendant control and 5mtr power lead are with circular connector, easily attached and removed.
• Capacitor and Resistors: To reduce contact sparkle and protect electric devices.
• Emergency Stop: Installed in TH and L models pendant control as standard

Specifications :

• Capacity  : 230 kg
• Voltage : 230V
• Phase : 1
• Speed (M/Min) : 19
• Motor :
• Capacity : 1.3 kw
• Type : Series Wound
• Wire Rope  : 5 mm
• Wire Rope Lift  : 30 m
• Brake : Ratchet
• � : 30%
• IP : 54
• FEM : 1 Am
• Gross weight : 23 kg
• Net Weight : 22 kg

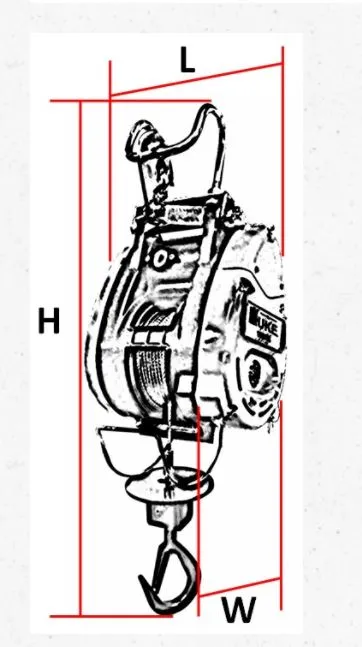

• Winch Body : 240 x 180 x 660 mm
• Package box : 530 x 260 x 360 mm

Accessories Included :

• TH Type & L Type Pendant Control set
• TH Type & L Type Power cable set
